概述
VTF使用模糊逻辑技术,适合温度要求精确的应用。

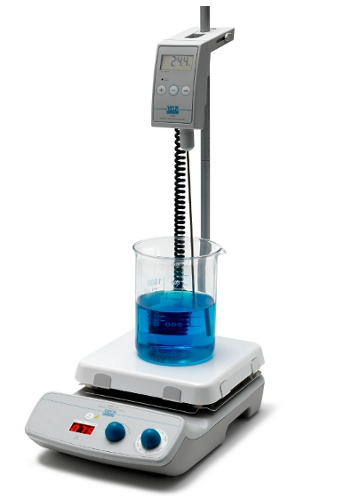

VTF 结合最常见的加热磁力搅拌器使用。
使用探头定位系统,操作简单、迅速修正探针位置,同时一个内置计时器,温度和时间可以预先设定。
由元素PW 10于派生出来的,VTF可以与所有类型的加热设备结合使用,例如水和油池、加热板等。
为更长使用寿命而设计,质保3年
VTF配有温度探针,电力电缆直接连接到加热磁力搅拌器 AREX, AREC.X, AREX Digital PRO, AREX-6 和 AREX-6 Digital PRO。
技术数据
Construction material: | technopolymer |
Clamping on rods: | from Ø 10 to Ø 13 mm |
Stainless steel probe type Pt 100: | 250 mm lenght and Ø 3 mm |
Display: | LCD |
Protection rating CEI EN 60529: | IP 54 |
Power supply: | 12 V dc |
Weight: | 0.3 Kg ( 0.7 lb) |
Dimensions (WxHxD): | 75x145x120 mm (3x5.7x4.7 in) |
PERFORMANCE | |
Thermoregulation range: | -10...+300 °C |
Precision: | ± 0.5 °C |
Resolution: | 0.2 °C |
Working time | from 0:00 to 24:59 (h:min) |
Remaining time reading: | possible |
Visualization of the maximum temperature reached: | possible |
